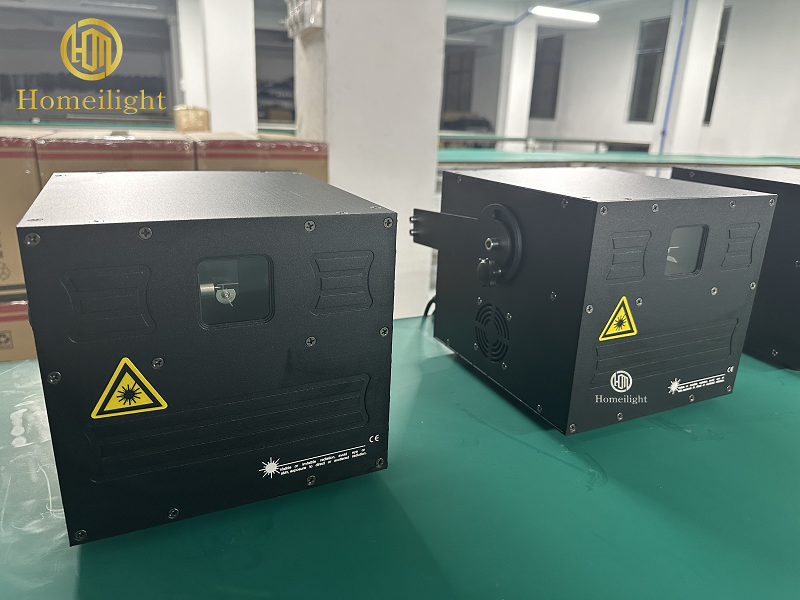

5W Full Color Animation Laser Light

HM-L5W
● Laser power: 5000MW

● Green light: 532nm-1200mw

● Red light: 638nm-1000mw

● Blue light: 450nm-2000mw
Quantity:
Contact Now
add to cart

5W animation laser light is a high-power, industrial-grade optical device designed for large-scale venues, outdoor events, and high-end stage productions. With a power output of 5000mW (5W), it delivers ultra-bright, high-contrast animated patterns, text, and dynamic graphics—maintaining exceptional visibility even in bright outdoor environments or large indoor spaces

Power supply         AC110 / 230V 50 ~ 60Hz ± 10%
Rated power＜ 150W
Laser power5000MW
Laser wavelength
Green light: 532nm-1200mw
Red light: 638nm-1000mw
Blue light: 450nm-2000mw
Scanning system                    15-25kpps high-speed galvanometer scanning system
Scanning angle± 20 °
Laser pattern128 laser effect patterns
Control modeILDA, DMX-512, voice control, self-propelled, master-slave
Control channel19CH
Cooling systemfan forced cooling system
Working environmentindoor (10 ~ 35 °)


Key Features & Competitive Advantages

（1）Ultra-High Performance Animation

  • High-Speed Scanning: Imported galvanometer scanners (Scanlab/CVI) ensure smooth, distortion-free playback of complex animations even at maximum resolution.
  • Multi-Format Compatibility: Works with professional laser software (Pangolin Beyond, Laserworld ShowNET, Phoenix Laser Control) and supports ILDA Pro for advanced animation editing.

（2）Reliable High-Power Design

  • Dual-Cooling System: Liquid cooling + fan forced convection solves overheating issues for 5W high-power lasers, enabling 24/7 continuous operation (critical for long events like music festivals).
  • Rugged & Weather-Resistant: Outdoor models feature IP65 waterproofing, anti-UV coating, and corrosion-resistant materials—suitable for outdoor use in rain, high humidity, or extreme temperatures.
  • Comprehensive Safety Protection:
    • Class 4 laser safety interlock (emergency stop button + remote interlock port)
    • Over-temperature/over-voltage/short-circuit protection
    • Laser beam safety shutter (auto-closes when abnormal)

（3）Flexible Control & Integration

  • Networked Control: Art-Net/SACN support enables centralized control of multiple laser lights (up to 128 units) via Ethernet, ideal for large venues (stadiums, theme parks).
  • Wireless & Offline Modes: Optional wireless DMX for cable-free setup; USB/SD card support for offline playback (stores up to 1000+ animation files).
  • Music Synchronization: MIDI interface + built-in sound sensor allows animations to sync with music beats (no additional software required for basic use).

（4）Energy Efficiency & Longevity

  • High-Efficiency Laser Diode: Conversion efficiency ≥35% (reduces power consumption compared to traditional 5W lasers).
  • Long Service Life: Laser diode lifespan ≥10,000 hours; galvanometer scanner lifespan ≥50,000 hours.

Application Scenarios

  • Large-Scale Outdoor Events: Music festivals, parades, fireworks shows, building projections (high brightness visible in sunlight).

  • High-End Stage Productions: Concerts, theater shows, award ceremonies (dynamic 3D animations synchronized with performances).

  • Entertainment Venues: Super clubs, theme parks, casinos (large-area pattern coverage and interactive effects).

  • Corporate & Advertising: Product launches, trade shows, stadium ads (custom logos, text, and brand-themed animations).

  • Public Spaces: Shopping malls, city squares, tourist attractions (architectural lighting and crowd engagement).
