New 10*60W Led Beam+Zoom Pixel Effect With Backlight Led Moving Head

  • New 10*60W Led Beam+Zoom Pixel Effect With Backlight Led Moving Head
  • New 10*60W Led Beam+Zoom Pixel Effect With Backlight Led Moving Head
  • New 10*60W Led Beam+Zoom Pixel Effect With Backlight Led Moving Head
  • New 10*60W Led Beam+Zoom Pixel Effect With Backlight Led Moving Head
  • New 10*60W Led Beam+Zoom Pixel Effect With Backlight Led Moving Head
Place of Origin Guangdong, China
Brand Name Homei
Certification CE,SGS,TUV,Rohs
Model Number HM-L1060
Document Product Brochure PDF
Minimum Order Quantity 2 pieces
Packaging Details Carton/Flight Case
Delivery Time 7 working days
Payment Terms Western Union, T/T,PayPal

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
White Light Color Temperature 6300K Luminous Flux 22400 Lm
LED Expected Lifespan 20000 Hours Beam Angle 2.8 ° -31 °
Spot Angle 5 ° -46 ° Control Panel LCD Display Screen
Control Protocol DMX512, RDM Power 800 W
Power Socke Power Connector Input/output
Highlight

10*60W Led Beam Moving Head

,

Backlight Led Beam Moving Head

,

Pixel Effect Led Beam Moving Head
Leave a Message
Product Description
New 10*60W Led Beam+Zoom Pixel Effect With Backlight Led Moving Head​




Product Description



Strobe end 96 x 3W CW LED
96 x 3W WW LED
96 x 0.5W RGB LED
White light color temperature 6300K
Luminous flux 22400 lm
LED expected lifespan 20000 hours
Beam angle 2.8 ° -31 °
Spot angle 5 ° -46 °
Control panel LCD display screen
Control protocol DMX512, RDM
Channel mode 17/27/99/108/168/8+100/8+160/170 channels
Software upgrade updating software through a DMA connection
Power 800 W
Power socket power connector input/output





Light source:
Beam end:
10 x 60W RGBW LED
Strobe end:
96 x 3W CW LED
96 x 3W WW LED
96 x 0.5W RGB LED
White light color temperature: 6300K
Luminous flux: 22400 lm
LED expected lifespan: 20000 hours

optical system

Zoom angle:
Beam angle: 2.8 ° -31 ° (beam end)
Spot angle: 5 ° -46 ° (beam end)

Control and Program

5 buttons
Control panel: LCD display screen
Control protocol: DMX512, RDM
DMA channel modes: 7 types
Channel mode: 17/27/99/108/168/8+100/8+160/170 channels
Software upgrade: updating software through a DMA connection

Y-axis

Y-axis operating angle: 202 °

Electrical and Interface

Input power supply: 180-240V~50/60Hz
Power: 800 W
Power socket: power connector input/output
Signal input/output: Three core or five core XLR socket, RJ45

Lamp specifications

Lamp size:
Length: 1000 mm (39.4 ")
Width: 290 mm (11.4 ")
Height: 120 mm (4.7 ")

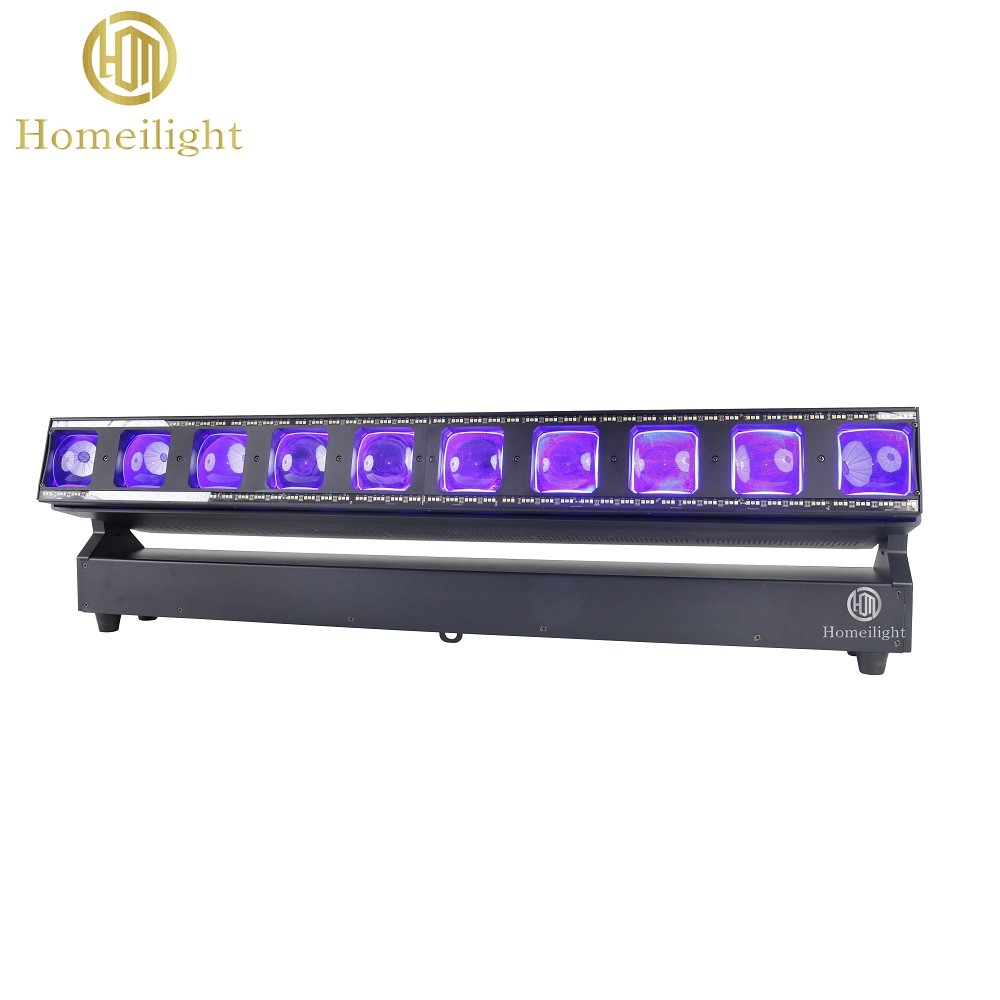

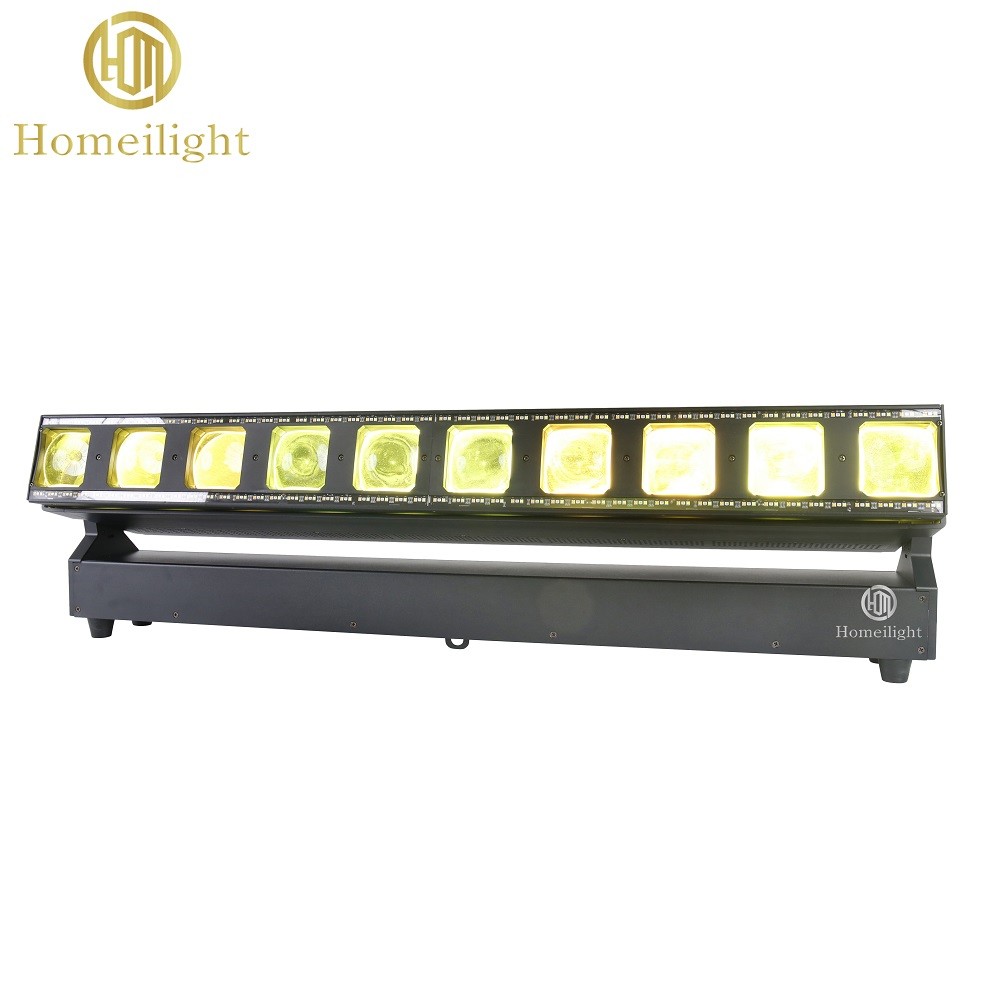

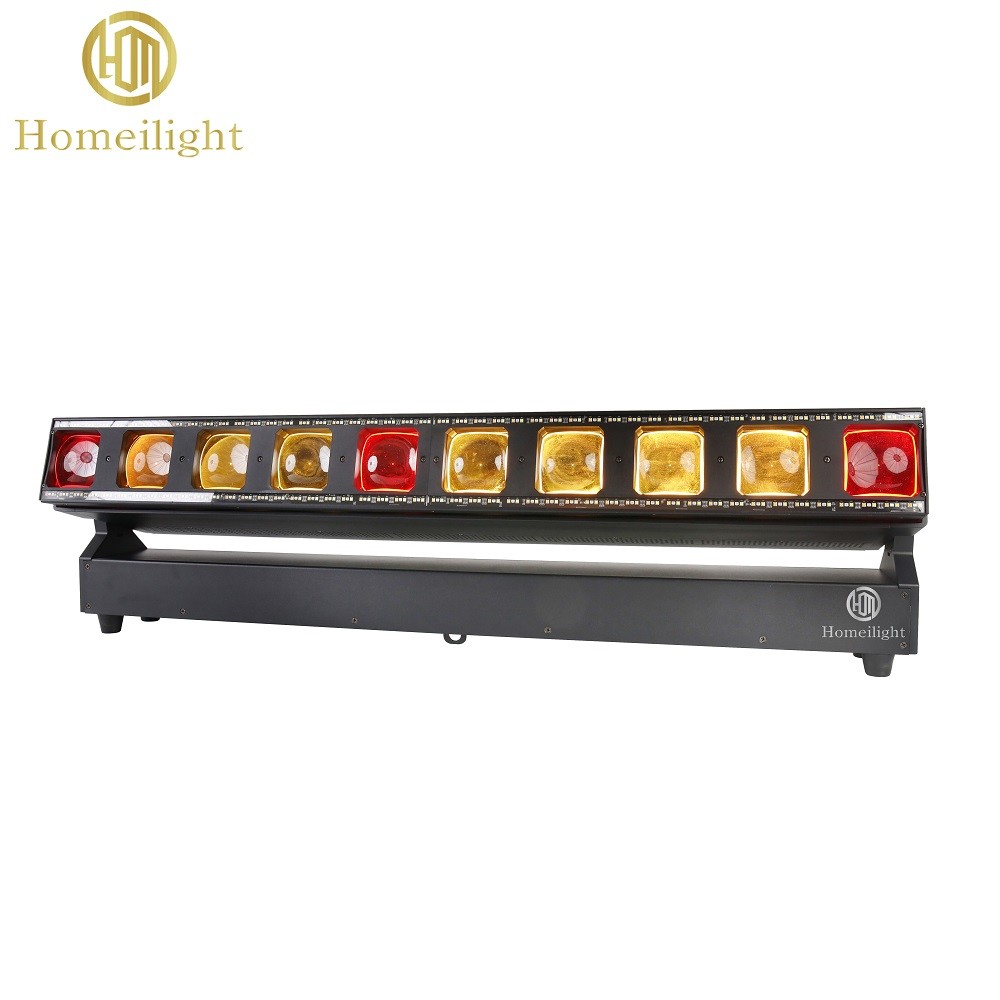

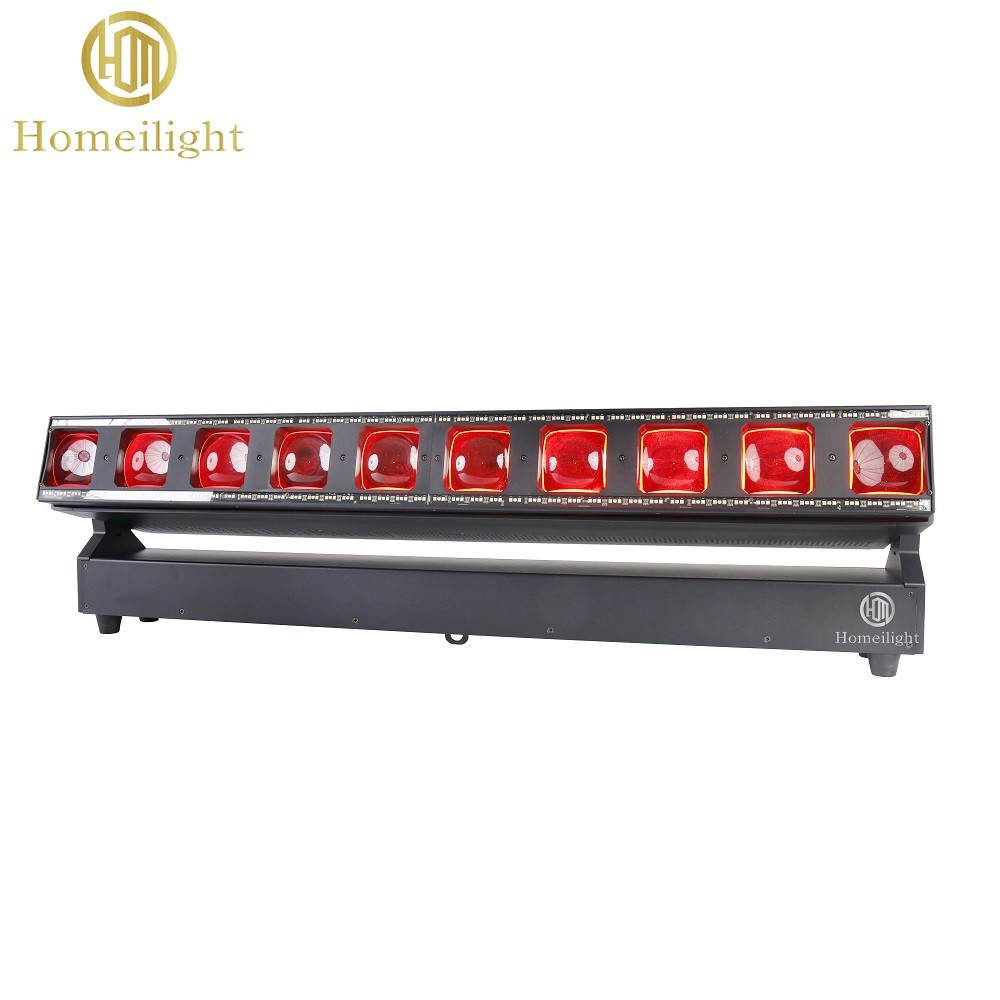

New 10*60W Led Beam+Zoom Pixel Effect With Backlight Led Moving Head 0



New 10*60W Led Beam+Zoom Pixel Effect With Backlight Led Moving Head 1
