Zoom Beam Wash 3in1 Pixel 10*60W LED Moving Head Bar Light Stage Light

  • Zoom Beam Wash 3in1 Pixel 10*60W LED Moving Head Bar Light Stage Light
  • Zoom Beam Wash 3in1 Pixel 10*60W LED Moving Head Bar Light Stage Light
  • Zoom Beam Wash 3in1 Pixel 10*60W LED Moving Head Bar Light Stage Light
  • Zoom Beam Wash 3in1 Pixel 10*60W LED Moving Head Bar Light Stage Light
  • Zoom Beam Wash 3in1 Pixel 10*60W LED Moving Head Bar Light Stage Light
Place of Origin Guangdong, China
Brand Name Homei
Certification CE,SGS,TUV,Rohs
Model Number HM-L1060
Document Product Brochure PDF
Minimum Order Quantity 2 pieces
Packaging Details Carton/Flight Case
Delivery Time 7 working days
Payment Terms Western Union, T/T,PayPal
Supply Ability 500 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
White Light Color Temperature 6300K Luminous Flux 22400 Lm
LED Expected Lifespan 20000 Hours Beam Angle 2.8 ° -31 °
Spot Angle 5 ° -46 ° Control Panel LCD Display Screen
Control Protocol DMX512, RDM Power 800 W
Power Socke Power Connector Input/output
Highlight

Stage LED Moving Head Bar Light

,

LED Moving Head Bar Light
Leave a Message
Product Description
10x60W Pixel beam bar zoom wash beam moving head 60W high power beam lights

Product Description



Light source:
Beam end:
10 x 60W RGBW LED
Strobe end:
96 x 3W CW LED
96 x 3W WW LED
96 x 0.5W RGB LED
White light color temperature: 6300K
Luminous flux: 22400 lm
LED expected lifespan: 20000 hours

optical system

Zoom angle:
Beam angle: 2.8 ° -31 ° (beam end)
Spot angle: 5 ° -46 ° (beam end)

Control and Program

5 buttons
Control panel: LCD display screen
Control protocol: DMX512, RDM
DMA channel modes: 7 types
Channel mode: 17/27/99/108/168/8+100/8+160/170 channels
Software upgrade: updating software through a DMA connection

Y-axis

Y-axis operating angle: 202 °

Electrical and Interface

Input power supply: 180-240V~50/60Hz
Power: 800 W
Power socket: power connector input/output
Signal input/output: Three core or five core XLR socket, RJ45

Lamp specifications

Lamp size:
Length: 1000 mm (39.4 ")
Width: 290 mm (11.4 ")
Height: 120 mm (4.7 ")



Products Description
Products Name
10x60W Pixel beam bar zoom wash beam moving head 60W high power beam lights
Model Number
HM-L1060
Power consumption
800W
Color
10pcs RGBW 4in1 LEDS
Application
disco, bar,stage,wedding,club.
Beam Angle
2.8-31 degree
Tilt movement
202 degree
Display
LCD display
Control mode
DMX512, Master-slave, Auto Run, Sound active
Channel
17/27/99/108/168/8+100/8+160/170 channels
Dimmer
0-100% Dimming
Size
100*29*12cm
Weight
19KG
Products Shows

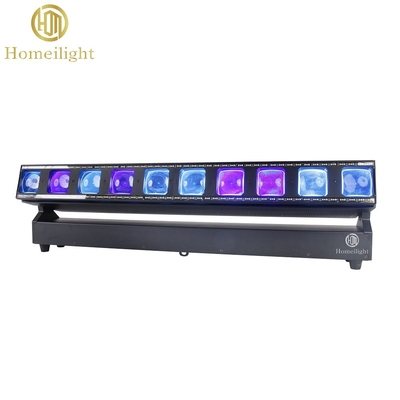

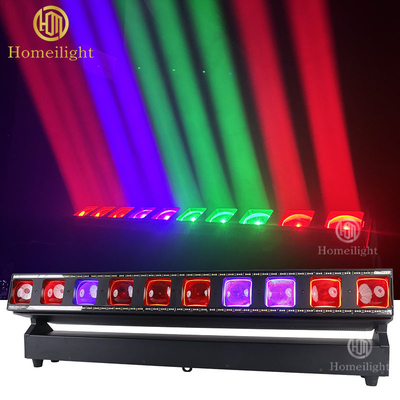

Zoom Beam Wash 3in1 Pixel 10*60W LED Moving Head Bar Light Stage Light 0
Zoom Beam Wash 3in1 Pixel 10*60W LED Moving Head Bar Light Stage Light 1
Zoom Beam Wash 3in1 Pixel 10*60W LED Moving Head Bar Light Stage Light 2
Zoom Beam Wash 3in1 Pixel 10*60W LED Moving Head Bar Light Stage Light 3
Zoom Beam Wash 3in1 Pixel 10*60W LED Moving Head Bar Light Stage Light 4
Zoom Beam Wash 3in1 Pixel 10*60W LED Moving Head Bar Light Stage Light 5

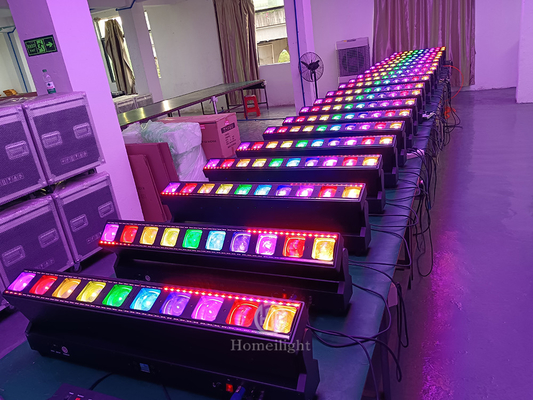

Our Production Line
