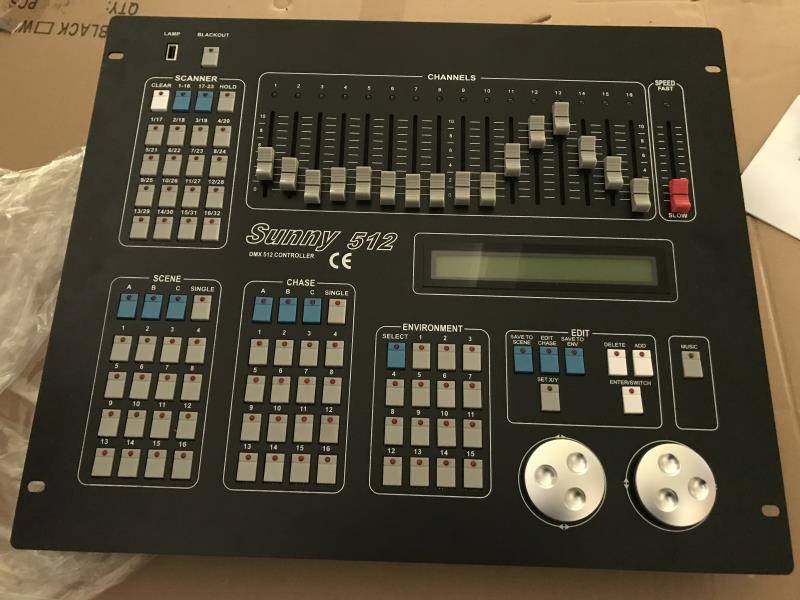

Sunny 512 Controller

● 1channel DMX512 digital input,1 channel DMX digital output ● Input/output optical isolation ● 8-way independent amplification and drive output;signal amplification and shaping function,long signal transmission distance,enhance the ability of the number of devices connected to the data bus; protect the DMX512 output interface of the lighting console, and isolate the fault site ● Improve the safety and reliability of digital lighting control system ● Independent LED signal indication; ● Power supply: AC220V/60Hz; ● Size: 45*22*40cm ● Total weight: 3KG

• Intel Core i5 CPU, 4GB RAM, 120G solid state drive. • Can run MA3D software and Wysiwyg3D software advanced rendering smoothly • Two 19-inch wide-screen touch screens with electric lifting and lowering. • Input voltage: 110V~220V 50~60Hz, built-in UPS uninterruptible power supply • 1 trackball mouse, easy to use to select menu operation. • 6 DMX-512 output interfaces, 1 DMX-512 input interface (composite type); • 1 LTC time code input interface, 1 MIDI time code input interface. • 1 main control dimming wheel, 4 attribute table wheels, 1 main control putter, 2 AB putters • 21 program playback faders, 42 program storage function keys • 4 USB ports, 1 audio port, 1 network port, 2 work light ports • Air box packaging: 93×73×26 (length, width and height) • Product weight: 62KG

●Voltage：AC90V-260V/50Hz ●Circuit insurance：3A（Power Supply）10A Circuit board ●Control system：Master slave/DMX512/Sound active/Automatic/All on ●Channels：8CH ●Control area：About ten square meters ●Program effect：17

●Voltage：AC90V-260V/50Hz ●Circuit insurance：3A（Power Supply）10A Circuit board ●Control system：Master slave/DMX512/Sound active/Automatic/All on ●Channels：8CH ●Control area：About 1024pcs lamps ●Program effect：30 kinds different effects
