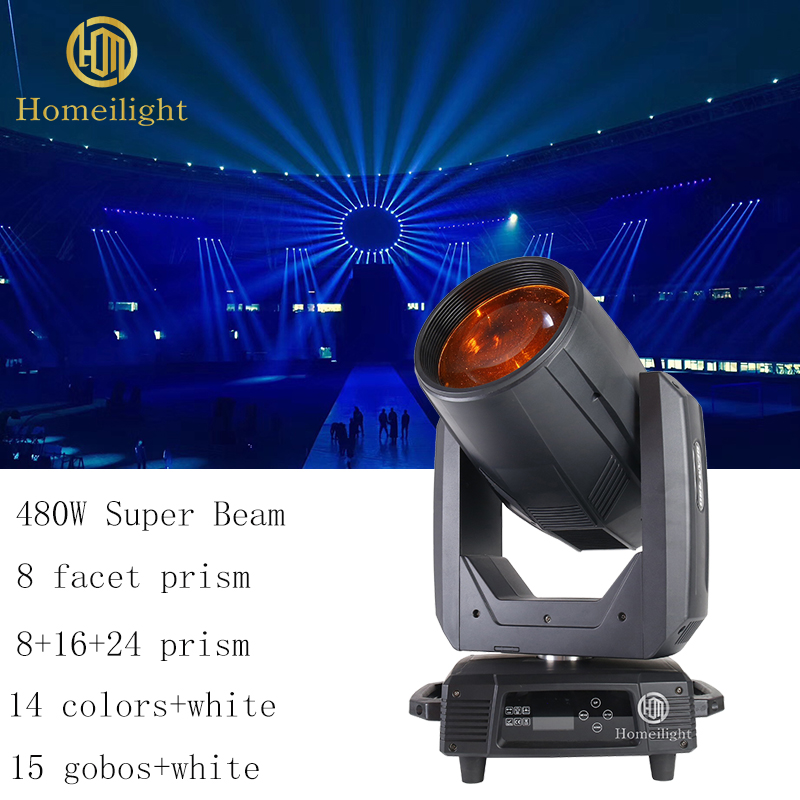

480W sharpy beam moving head light

HM-M480W

Input voltage: AC100-240V, 50/60Hz
Total power: 650W
Color temperature: 7000K
Lens aperture: 200MM
Horizontal scan: 540 ° Vertical scan: 270 °
Light source: Japanese Oxtail/OSRAM 480W
Waterproof grade: IP20
Control mode: DMX512, RDM
Channel: 16/20 Channel
Color palette: 14 colors+white light with bi-directional variable speed rainbow effect
Pattern plate: 15 fixed pattern pieces+white light

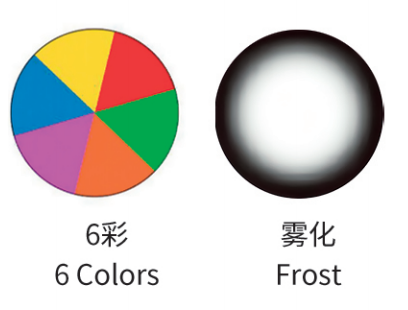

Nebulization: 1 atomizing mirror
Prism 1:8: Prism bidirectional variable speed rotation
Prism 2:8+16+24 dimple peak prism Two prisms can be stacked, enlarged, and rotated

Quantity:

Contact Now

add to cart

Description:

● Homei Lighting 480W sharpy beam moving head light, Bulb life more than 5,000 hours

● Prism: doube prism,8 prism,8+16+24 prism. can rotate independently in both directions

●With 1 fixed pattern plate of 15 fixed patterns+ white
●Fast strobe, multi-strobe mode selection, synchronization, bisection, random;
●Menu display: 2.8-inch LCD touch screen + buttons, Chinese and English languages can be switched at will, fonts can be automatically displayed in reverse 180 degrees

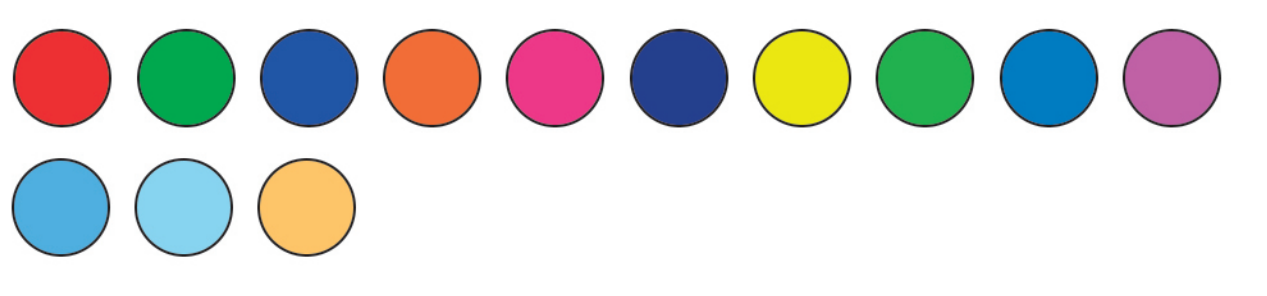

Color Wheel: 13 colors+ white, support OEM

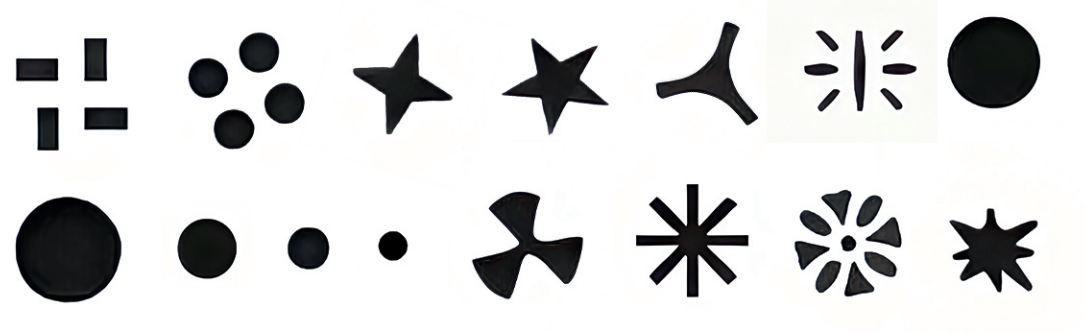

Fixed gobo wheel, 15 fixed gobo+ white

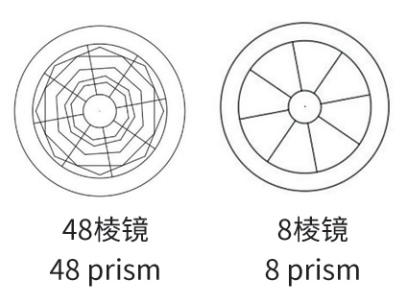

Prism wheel and effect wheel, 8 prism,48 prism, double prism, with rainbow effect

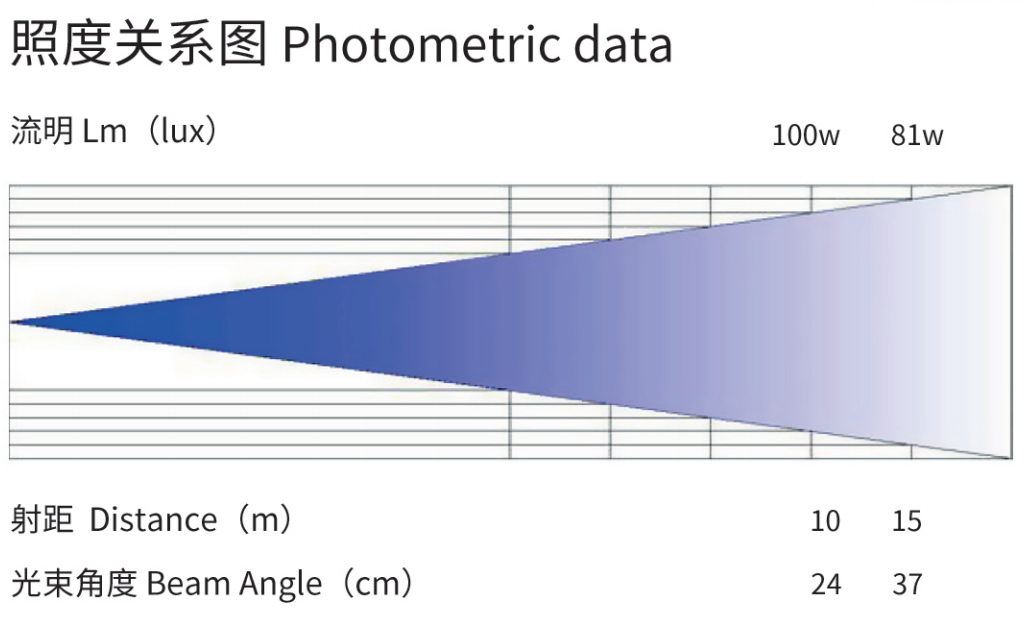

Photometric data

Input Voltage	AC110V-240V / 50-60Hz
Light Source Specification	480W
Light Source Life	5,000 hours
Lumen Illuminance	100w lm at 10 meters
Rated Power	650W
Channel Mode	16/20channels
Horizontal Scan	540 degrees (16-bit precision scan), electronic error correction
Vertical Scanning	270 degrees (16-bit precision scanning), electronic error correction
Dimming System	0-100% linear adjustment
Focusing System	Linear adjustment from 4 meters to 50 meters
Atomization System	Independent atomization effect, soft and natural light spot
Magnification Angle	1.4 degrees
High-Speed Strobe	0-30 times/sec, adjustable speed strobe effect, strobe macro function
Color	14 colors + white light
Fixed Gobos	15 fixed patterns + white light
Prism System	Standard single 8-row prism and 8+16+24 prism, each can be independently rotated forward and reverse
Macro Function	Console reset function, self-propelled mode, master-slave mode
Display Mode	LCD, key + touch dual operation mode
Control Signal	International standard DMX512, with RDM function, online software upgrade available, dial address code
Cooling Method	Axial fan to enhance cooling
Safety Device	Electronic temperature control overheating protection, automatic power-off protection when the overheating system fails
Appearance Material	High-temperature resistant plastic
Working Environment	-20°C to 40°C
Protection Level	IP20
Gross Weight	24 kg
Package Size	783651 cm (L × W × H)
