450w 3in1 beam moving head light

HM-M450

Voltage: AC100-240V, 50/60Hz
Fast strobe, multiple strobe mode selection, synchronization, aliquot, pulse, random
Horizontal 540°, accuracy 2.11°/step, fine-tuning accuracy 0.008°
Vertical 240°, accuracy 1.05°/step, fine-tuning accuracy 0.004°
Control channels: 21 DMX channels
Menu display: 2.8 inch LCD touch screen + buttons, Chinese and English language switch at will, font automatic 180 degree reverse display
XY axis three-phase motor drive
RDM data is transmitted in both directions
Net weight: 25kg Gross weight: 28kg
Product size: 415×281×715mm
Packing size: 780×360×510mm

Quantity:

Contact Now

add to cart

Description:

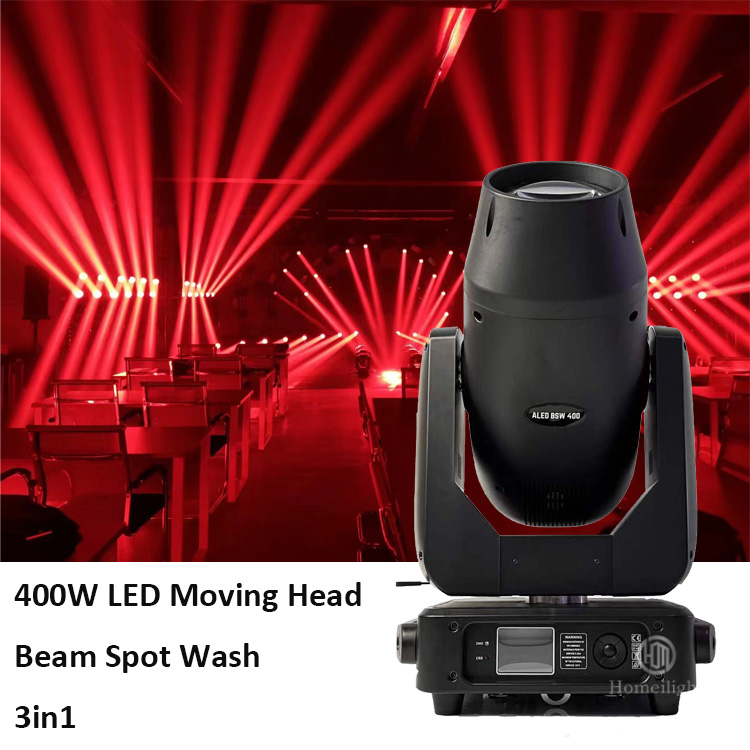

● Homei Lighting 450W CMY 3IN1 Led moving head beam light, LED life more than 100,000 hours

● Prism: double prism, can rotate independently in both directions

●With 1 fixed pattern plate of 12 fixed patterns (12 patterns + white light);
●Fast strobe, multi-strobe mode selection, synchronization, bisection, random;
●Menu display: 2.8-inch LCD touch screen + buttons, Chinese and English languages can be switched at will, fonts can be automatically displayed in reverse 180 degrees

Color Wheel: 8 colors+ white, support OEM

Fixed gobo wheel, 12 fixed gobo+ white

Rotation gobo wheel, 7 rotation gobo+white

Prism wheel and effect wheel, 8 prism,3 prism, double prism, with CMY effect.

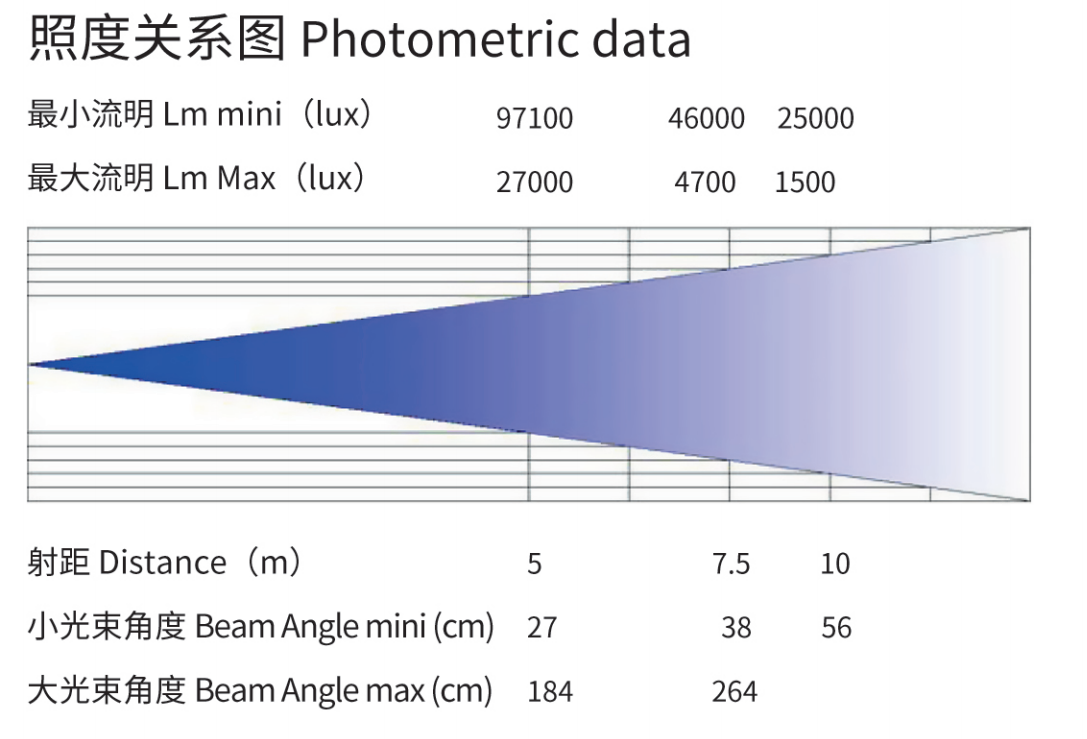

Photometric data

Input Voltage	AC110V-240V / 50-60Hz
Light Source Specification	LED 400W
Light Source Life	100,000 hours
Lumen Illuminance	27000 lm at 5 meters
Rated Power	450W
Channel Mode	23 channels
Horizontal Scan	540 degrees (16-bit precision scan), electronic error correction
Vertical Scanning	270 degrees (16-bit precision scanning), electronic error correction
Dimming System	0-100% linear adjustment
Focusing System	Linear adjustment from 4 meters to 50 meters
Atomization System	Independent atomization effect, soft and natural light spot
Magnification Angle	4-42 degrees
High-Speed Strobe	0-30 times/sec, adjustable speed strobe effect, strobe macro function
Color	8 colors + white light

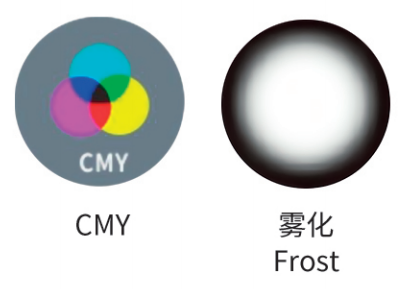

Color Mixing System	Linear CMY+CTO color mixing system

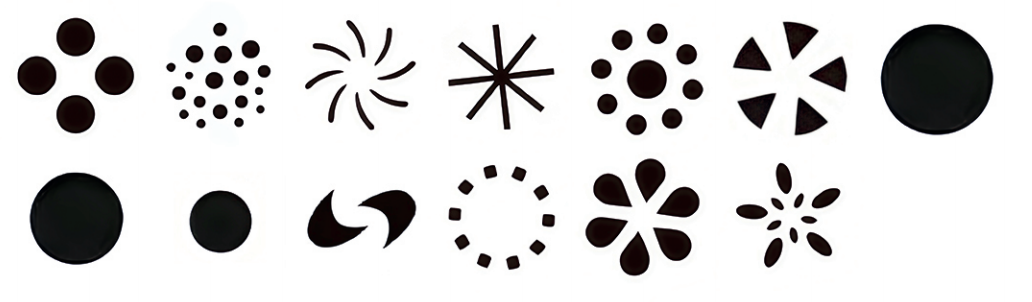

Fixed Gobos	12 fixed patterns + white light

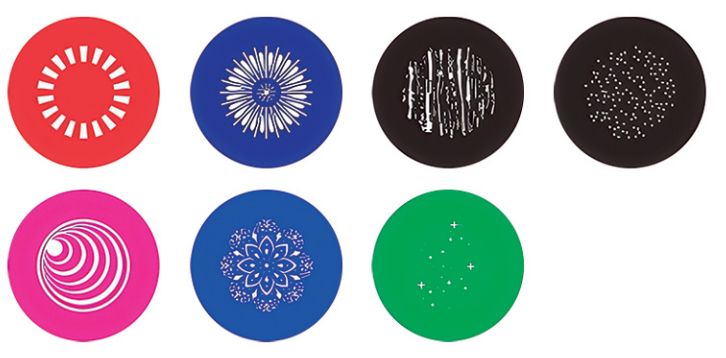

Rotating Gobos	7 rotation patterns, each can be independently rotated forward and reverse

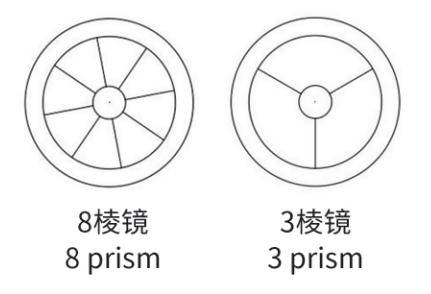

Prism System	Standard single 8-row prism and 3 prism, each can be independently rotated forward and reverse
Macro Function	Console reset function, self-propelled mode, master-slave mode
Display Mode	LCD, key + touch dual operation mode
Control Signal	International standard DMX512, with RDM function, online software upgrade available, dial address code
Cooling Method	Axial fan to enhance cooling
Safety Device	Electronic temperature control overheating protection, automatic power-off protection when the overheating system fails
Appearance Material	High-temperature resistant plastic
Working Environment	-20°C to 40°C
Protection Level	IP20
Gross Weight	28 kg
Package Size	783651 cm (L × W × H)
