Category

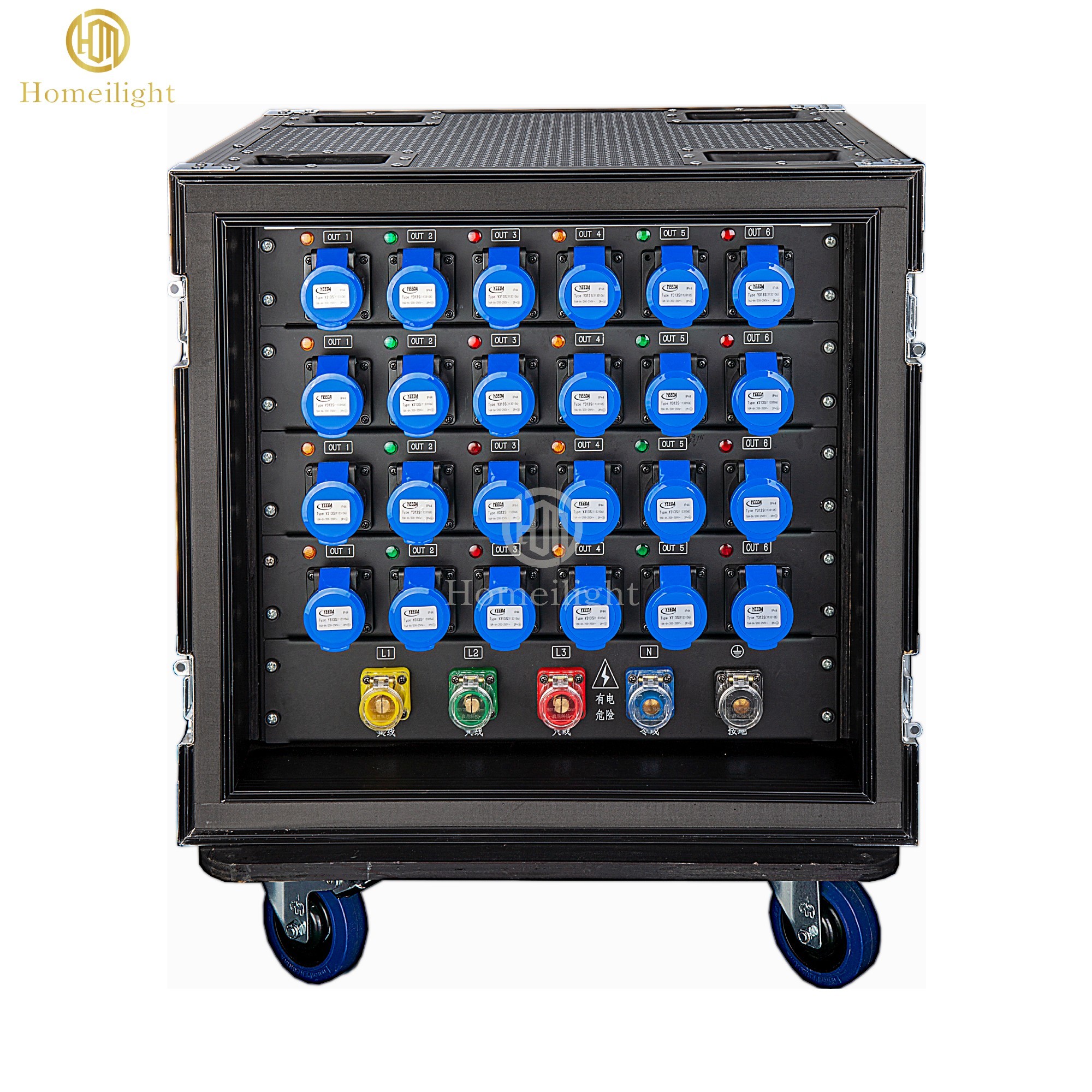

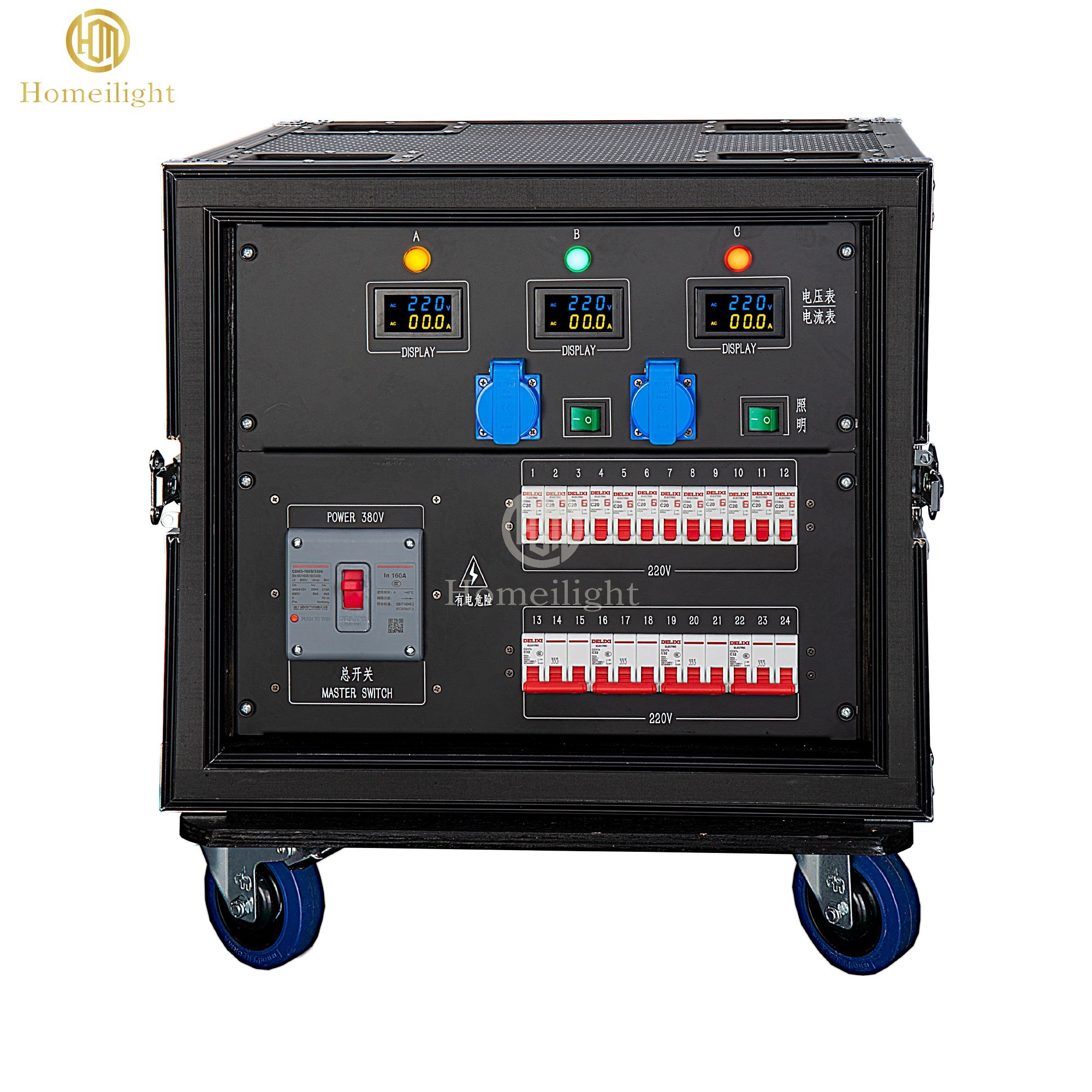

Homei 24x16A Power Cabinet for Straight-Through Stage Lighting Equipment
HM-2416(16A)
● Power supply: three-phase five wire system AC380±10%, frequency50Hz/60Hz±5%
● Input current: Self locking interleaved zero fire 200A Rhino plug
● Display:Equipped with three-phase A B C direct reading
● independent LCD current and voltage meter display
● Real time monitoring of various data without switching
● Output: 24 channels of 16A waterproof output,each output with indicator light display
● Body: Made of exquisite and durable double-layer shock- absorbing hexagonal patterned board;10U standard cabinet.
● Control system: The main control adopts a 160A/200A main air switch; Each independent circuit breaker C20A has dual protection against overload and short circuit.
● Normal working environment: Environmental temperature: 0-±45C
● Relative humidity: 40%-80%
● Equipped with work lights
● Product size（mm): L670×W600×H680
● Input current: Self locking interleaved zero fire 200A Rhino plug
● Display:Equipped with three-phase A B C direct reading
● independent LCD current and voltage meter display
● Real time monitoring of various data without switching
● Output: 24 channels of 16A waterproof output,each output with indicator light display
● Body: Made of exquisite and durable double-layer shock- absorbing hexagonal patterned board;10U standard cabinet.
● Control system: The main control adopts a 160A/200A main air switch; Each independent circuit breaker C20A has dual protection against overload and short circuit.
● Normal working environment: Environmental temperature: 0-±45C
● Relative humidity: 40%-80%
● Equipped with work lights
● Product size（mm): L670×W600×H680
Quantity:
Homei 24x16A Power Cabinet for Straight-Through Stage Lighting Equipment
Technical Specifications
| Power supply: three-phase five wire system AC380±10%, frequency50Hz/60Hz±5% |
| Input current: Self locking interleaved zero fire 200A Rhino plug |
| Display:Equipped with three-phase A B C direct reading |
| independent LCD current and voltage meter display |
| Real time monitoring of various data without switching |
| Output: 24 channels of 16A waterproof output,each output with indicator light display |
| Body: Made of exquisite and durable double-layer shock- absorbing hexagonal patterned board;10U standard cabinet. |
| Control system: The main control adopts a 160A/200A main air switch; Each independent circuit breaker C20A has dual protection against overload and short circuit. |
| Normal working environment: Environmental temperature: 0-±45C |
| Relative humidity: 40%-80% |
| Equipped with work lights |
| Product size（mm): L670×W600×H680 |
