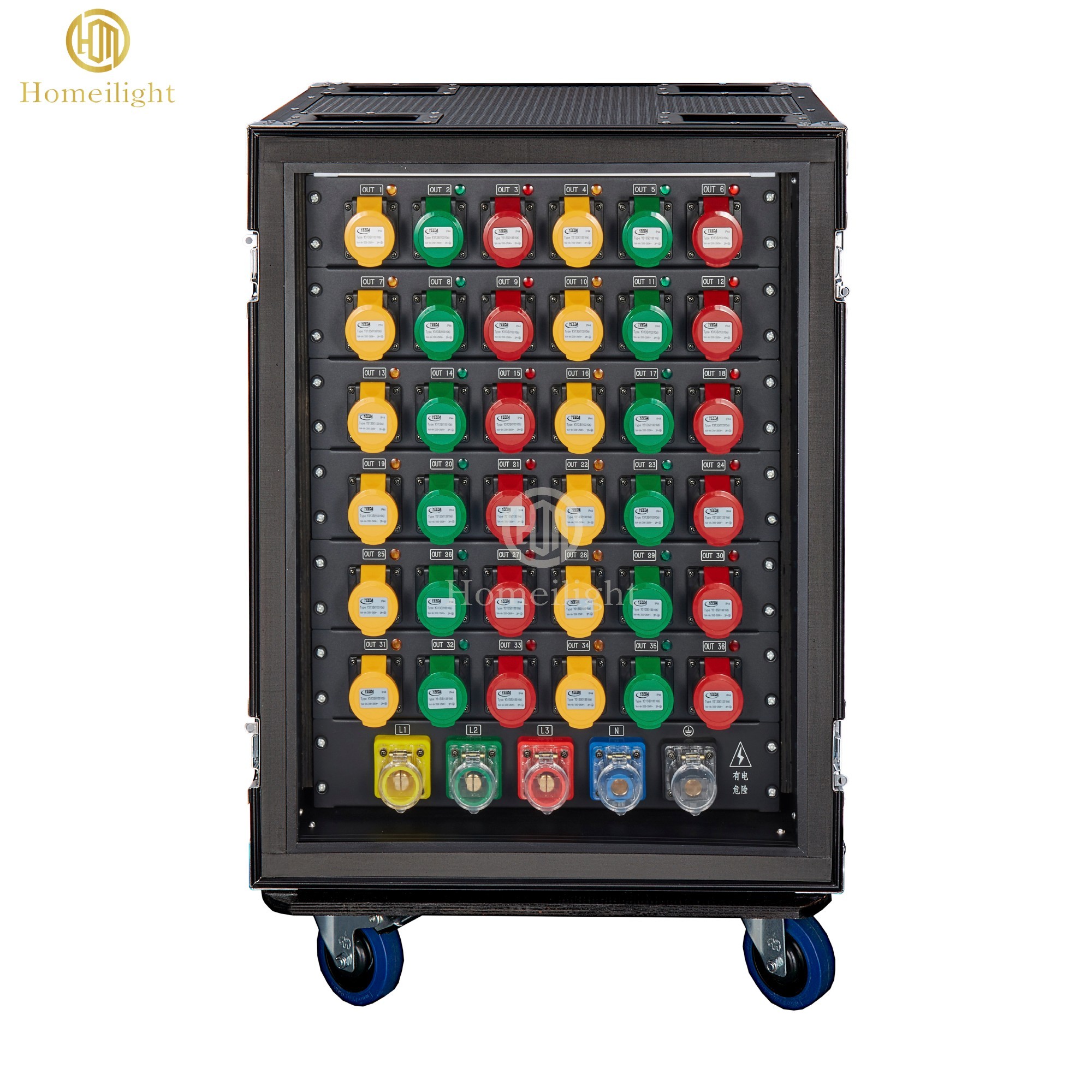

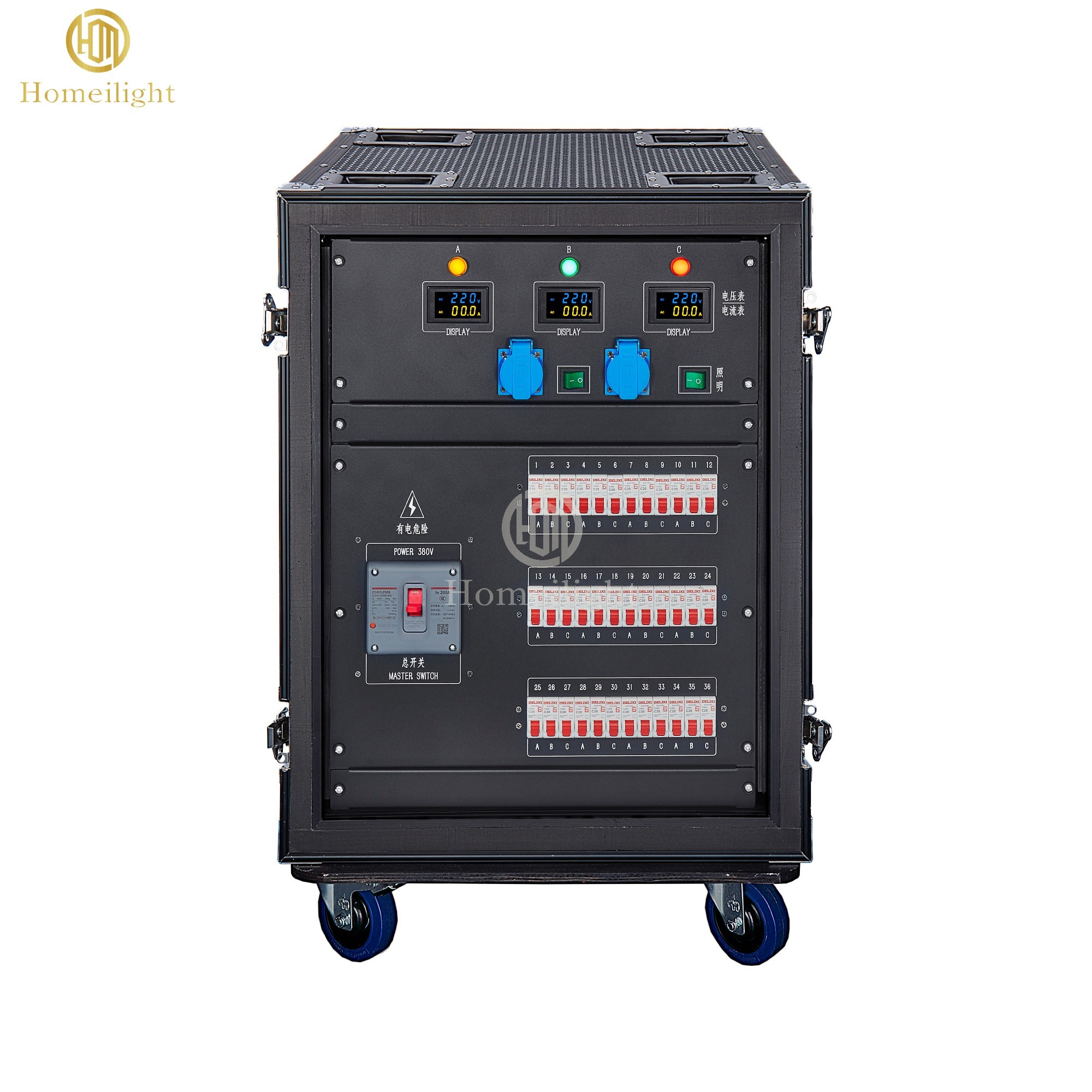

Homei 36x16A Power Cabinet for Straight-Through Stage Lighting Equipment

● Power supply: three-phase five wire system AC380±10%, frequency50Hz/60Hz±5% ● Input current: Self locking interleaved zero fire 200A Rhino plug ● Display:Equipped with three-phase A B C direct reading ● independent LCD current and voltage meter display ● Real time monitoring of various data without switching ● Output: 24 channels of 16A waterproof output,each output with indicator light display ● Body: Made of exquisite and durable double-layer shock- absorbing hexagonal patterned board;10U standard cabinet. ● Control system: The main control adopts a 160A/200A main air switch; Each independent circuit breaker C20A has dual protection against overload and short circuit. ● Normal working environment: Environmental temperature: 0-±45C ● Relative humidity: 40%-80% ● Equipped with work lights ● Product size（mm): L670×W600×H680

● Power supply: three-phase five wire system AC380±10%, frequency50Hz/60Hz±5% ● Input current: 63A 5-core aviation plug-in type ● Display: Equipped with three-phase A B. C direct reading independent voltmeter display ● Output: 12 channels of 16A waterproof output,each channel outputs 3Kw ● Body: Made of iron body ● Control system: The main control adopts a 32A main air switch; ● Each group of independent controls(32A) with dual protection against overload and short circuit, ● working in a normal environment: Environmental temperature: 0-±45C ● Relative humidity:40%-80%

● Power supply: three-phase five wire system AC380±10%, frequency50Hz/60Hz±5% ● Input current: 63A industrial plug(IP44) ● Display: Equipped with three-phase ABC direct reading ● independent LCD current and voltage meter display, real-time monitoring of various data without switching ● Output: 12 channels of 16A waterproof output, each output with indicator light display ● Body: Made of exquisite single-layer hexagonal pattern fireproof board;4U standard cabinet. ● Control system: The main control adopts a 63A main air switch; ● Each channel is independently split into C20A air switches. Equipped with dual protection against overload and short circuit. ● Normal working environment: Environmental temperature:0-±45C ● Relative humidity: 40%-80% ● Productsize（mm）: L530×W520xH200
