stage lighting stage effect equipment 6-way digital dimming silicon box power supply
| Place of Origin | China |
|---|---|
| Brand Name | Homei |
| Certification | CE, ROHS, SGS, TUV |
| Model Number | HM-VC01 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 2 |
| Packaging Details | Carton Packing size:21*5*30cm |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | AC90V-260V/50HZ | Output | 3*10A |
|---|---|---|---|
| Signal Interface | Digital DMX-512 (1990). | Power Supply | Three-phase Five-wire AC380V±10% |
| Dimensions | L515×W485×H145 | ||
| Highlight | 1024pcs Lamps All In One Controller,8CH All In One Controller,TUV All In One Controller |
||
Product Description

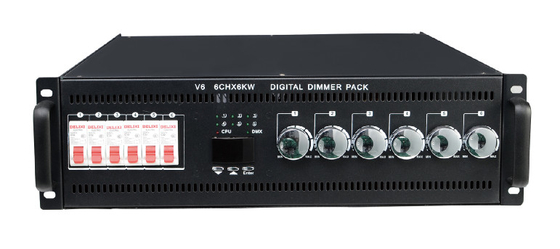

6-way digital dimming silicon box for stage lighting stage effect equipment
Power supply: three-phase five-wire AC380V±10%, frequency 50Hz±5%.
Signal interface: digital DMX-512 (1990).

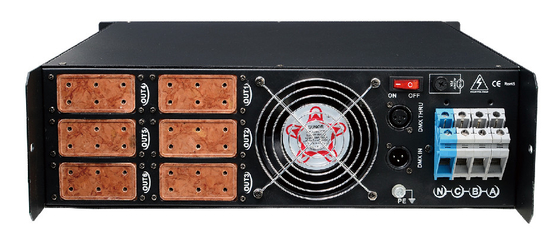

Rated power: 6 channels × 6KW. The maximum output power of each circuit can reach 8kW. Terminal input, 3*10A bakelite plug output
Functional features:
1. The core device of the silicon box, the thyristor chip, adopts original imported materials, and the performance is stable and reliable.
2. Good heat dissipation device and forced air cooling are combined with intelligent environmental protection control system.
3. The efficient anti-interference choke has strong anti-interference ability, low noise, and current rise time of 220us-450us.
4. Starting circuit setting, preheating value setting.
5. The dimming curve can be set to linear or switch state, the switch value is 50%, and when the input brightness value in the switch state is greater than or equal to 50%, the corresponding output circuit is fully output, otherwise there is no output.
Dimensions (mm): L515×W485×H145, whole machine weight: 17.5K
