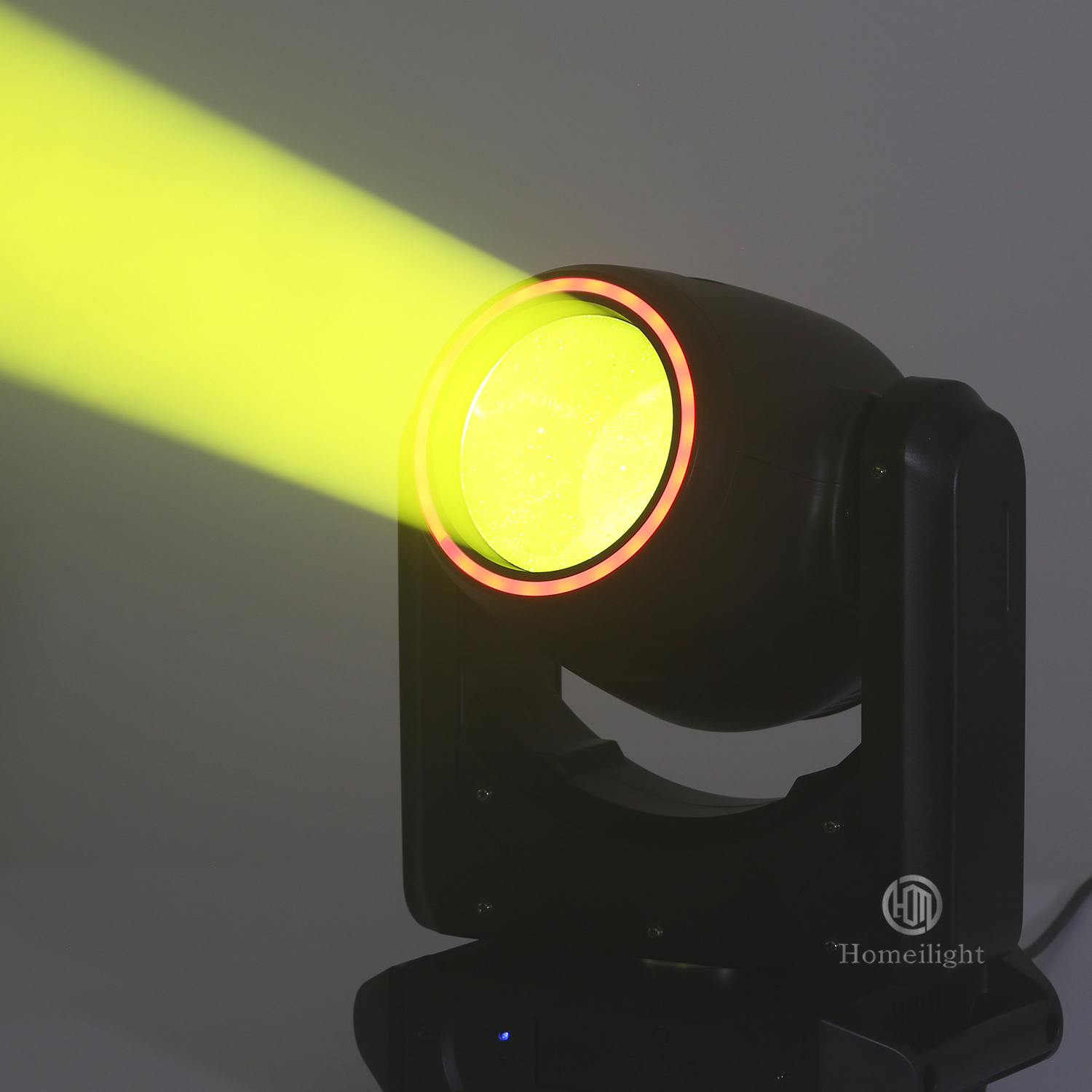

100w LED beam moving head light
HM-M100W
LED light source life: average life 50,000 hours
Horizontal: 540 degrees + fine adjustment
Vertical: 270 degrees + fine adjustment
Beam angle: 1.8 degrees
Channels: 17 DMX channels
Dimming: 0-100% linear dimming
Strobe: 1-25Hz, random pulse multiple strobes
Color wheel: 11 colors + blank
Prism: 6+12 prism (optional)
Horizontal: 540 degrees + fine adjustment
Vertical: 270 degrees + fine adjustment
Beam angle: 1.8 degrees
Channels: 17 DMX channels
Dimming: 0-100% linear dimming
Strobe: 1-25Hz, random pulse multiple strobes
Color wheel: 11 colors + blank
Prism: 6+12 prism (optional)
Quantity:
Description:
● Homei Stage Lighting 100W sharpy beam moving head light,LED modle lifetime more than 50000 hours, one of the hot sale item.
● Prism: 6+12 prism, can rotate independently in both directions. prism can be customized
● With 1 fixed pattern plate of 18 fixed patterns+ white
● one color wheel, 11 colors + white
● Fast strobe, multi-strobe mode selection, synchronization, bisection, random;
● Menu display: 2.8-inch LCD touch screen + buttons, Chinese and English languages can be switched at will, fonts can be automatically displayed in reverse 180 degrees
● Fast strobe, multi-strobe mode selection, synchronization, bisection, random;
● Menu display: 2.8-inch LCD touch screen + buttons, Chinese and English languages can be switched at will, fonts can be automatically displayed in reverse 180 degrees
| Input Voltage | AC110V-240V / 50-60Hz |
| Light Source Specification | 100W |
| Light Source Life | 5,0000 hours |
| Lumen Illuminance | 2w lm at 5 meters |
| Rated Power | 200W |
| Channel Mode | 17 channels |
| Horizontal Scan | 540 degrees (16-bit precision scan), electronic error correction |
| Vertical Scanning | 270 degrees (16-bit precision scanning), electronic error correction |
| Dimming System | 0-100% linear adjustment |
| Focusing System | Linear adjustment from 4 meters to 50 meters |
| Atomization System | Independent atomization effect, soft and natural light spot |
| Magnification Angle | 1.8 degrees |
| High-Speed Strobe | 0-30 times/sec, adjustable speed strobe effect, strobe macro function |
| Color | 11 colors + white light |
| Fixed Gobos | 18 fixed patterns + white light |
| Prism System | Standard single 6+12 prism, each can be independently rotated forward and reverse |
| Macro Function | Console reset function, self-propelled mode, master-slave mode |
| Display Mode | LCD, key + touch dual operation mode |
| Control Signal | International standard DMX512, with RDM function, online software upgrade available, dial address code |
| Cooling Method | Axial fan to enhance cooling |
| Safety Device | Electronic temperature control overheating protection, automatic power-off protection when the overheating system fails |
| Appearance Material | High-temperature resistant plastic |
| Working Environment | -20°C to 40°C |
| Protection Level | IP20 |
| Gross Weight | 7 kg |
| Size | 28*20*40cm (L × W × H) |
