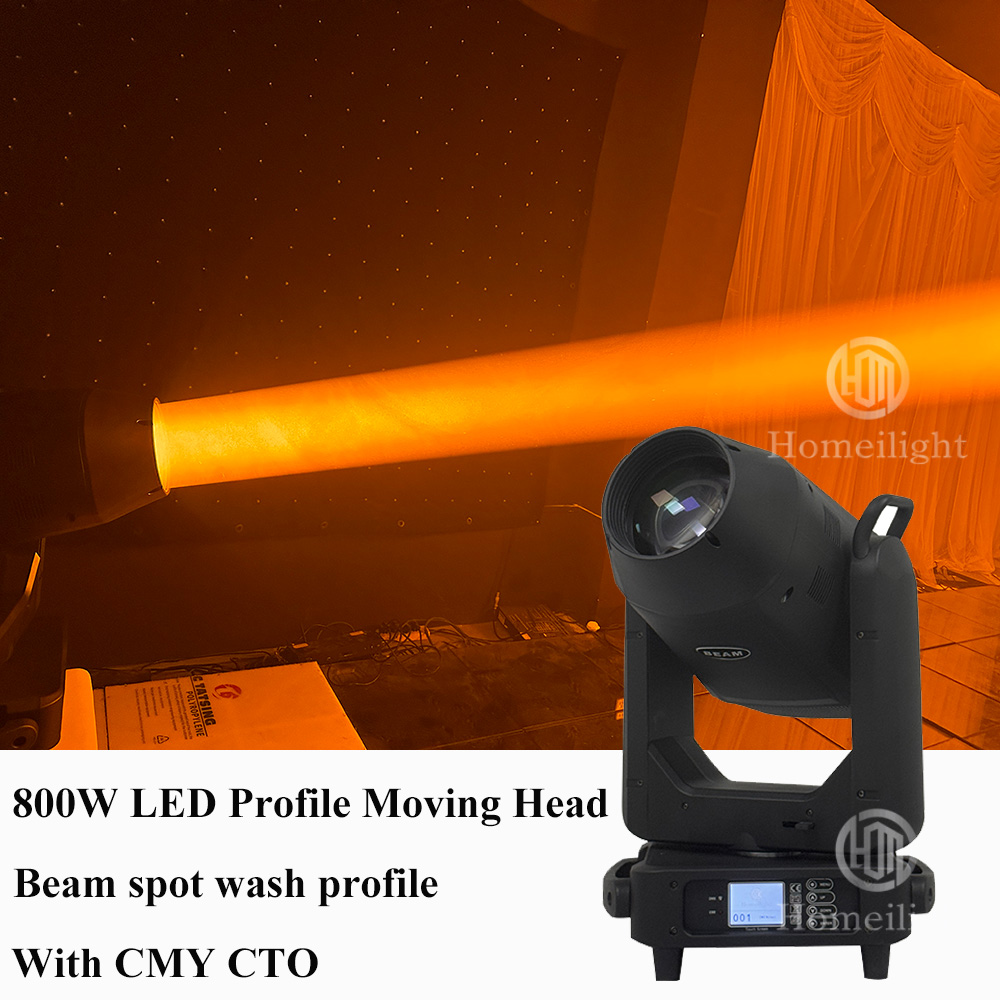

800w 4in1 profile frame moving head light

HM-M800W

. Light source: High power 600W white LED module
. Color: White light+5 colors+CTO, can achieve color flow, color rainbow With CMY effect
.1 rotating gobo wheel: 7 gobos+white
.1 fixed pattern wheel: 6 fixed gobos+white+1 dynamic pattern can achieve effects such as rotation,bidirectional flow, shaking, etc Pattern wheel can be positioned
. Aperture:5% -100% smooth adjustment
. Dimming: Electronic 0-100% linear dimming
. Atomization: Electronic 0-100% linear atomization soft light effect

Quantity:

Contact Now

add to cart

Description:

●Homei Lighting 800W CMY 4IN1 Led profil frame moving head beam light, LED life more than 100,000 hours

● Prism: double prism, can rotate independently in both directions

●With 1 fixed pattern plate of 6 fixed patterns and dynamic patterns, 7 rotation gobo + white
●Fast strobe, multi-strobe mode selection, synchronization, bisection, random;
●Menu display: 2.8-inch LCD touch screen + buttons, Chinese and English languages can be switched at will, fonts can be automatically displayed in reverse 180 degrees

Color Wheel: 5 colors+ white, support OEM

Fixed gobo wheel, 6 fixed gobo+ white+dynamic pattern

Rotation gobo wheel, 7 rotation gobo+white

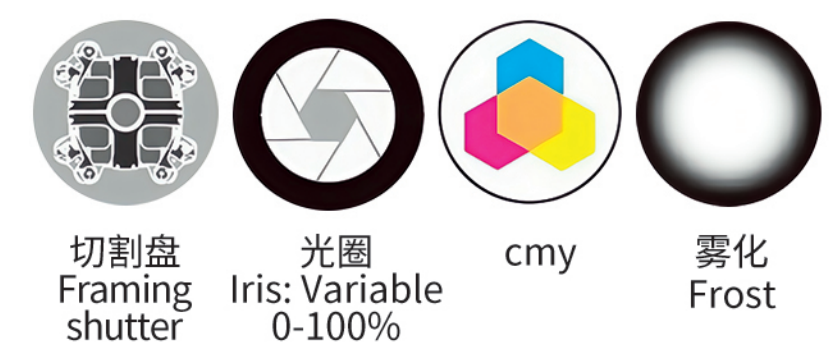

Prism wheel and effect wheel, 24 prism,3 prism, double prism, with CMY effect. with framing shutter

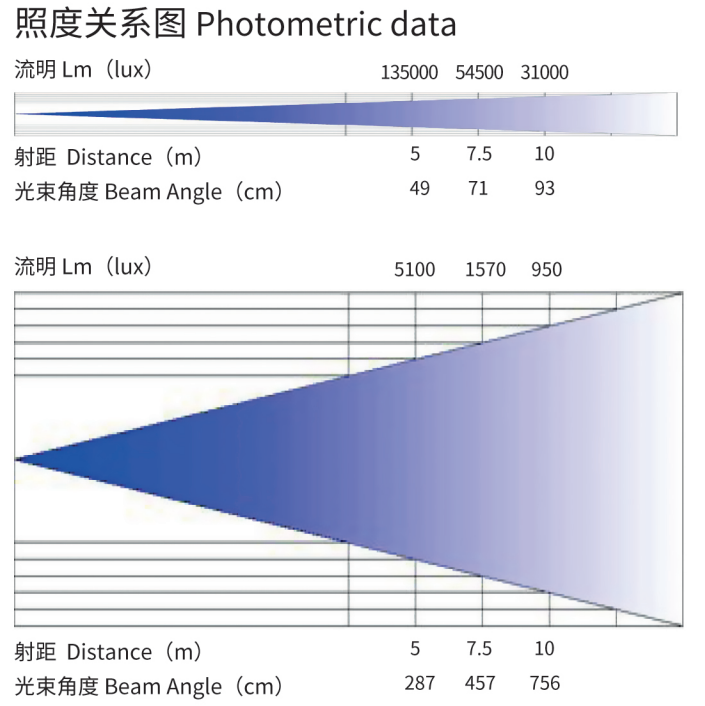

Photometric data

Input Voltage	AC110V-240V / 50-60Hz
Light Source Specification	LED 800W
Light Source Life	100,000 hours
Lumen Illuminance	27000 lm at 5 meters
Rated Power	1200W
Channel Mode	34 channels
Horizontal Scan	540 degrees (16-bit precision scan), electronic error correction
Vertical Scanning	270 degrees (16-bit precision scanning), electronic error correction
Dimming System	0-100% linear adjustment
Focusing System	Linear adjustment from 4 meters to 50 meters
Atomization System	Independent atomization effect, soft and natural light spot
Magnification Angle	4-35 degrees
High-Speed Strobe	0-30 times/sec, adjustable speed strobe effect, strobe macro function
Color	5 colors + white light
Color Mixing System	Linear CMY+CTO color mixing system
Fixed Gobos	6 fixed patterns + white light+dynamic pattern
Rotating Gobos	7 rotation patterns, each can be independently rotated forward and reverse

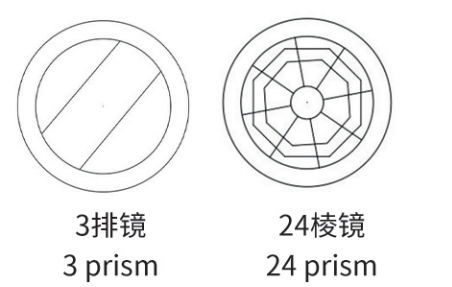

Prism System	Standard single 24 prism and 3 prism, each can be independently rotated forward and reverse
Macro Function	Console reset function, self-propelled mode, master-slave mode
Display Mode	LCD, key + touch dual operation mode
Control Signal	International standard DMX512, with RDM function, online software upgrade available, dial address code
Cooling Method	Axial fan to enhance cooling
Safety Device	Electronic temperature control overheating protection, automatic power-off protection when the overheating system fails
Appearance Material	High-temperature resistant plastic
Working Environment	-20°C to 40°C
Protection Level	IP20
Gross Weight	28 kg
Package Size	783651 cm (L × W × H)
